MultiRAE
* Cannot use Chlorine Dioxide and Hydrogen Sulfide sensors in the same unit. *
* Cannot use Nitric Oxide and Ammonia sensor in the same unit. *
* NDIR % Vol Combustible Sensors must be accompanied by the Catalytic "LEL" sensor. *

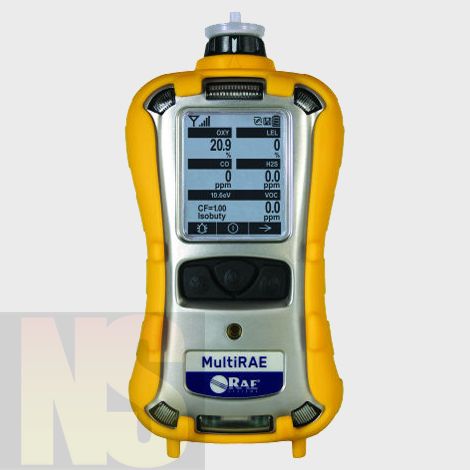

MultiRAE - The NEW MultiRAE - Wireless Portable Six-Gas Monitor with Advanced VOC Detection Capability (PGM-6228) by RAE Systems.
The MultiRAE is the most advanced wireless portable chemical detector on the market with a 0.1 to 5,000 ppm PID sensor range, the broadest in its class. Certified to meet the military performance standard MIL-STD-810F, the MultiRAE can be configured with more than 30 intelligent sensors (including PID, NDIR, and exotics such as ammonia, chlorine, formaldehyde, and phosgene) to fully meet the monitoring needs of a variety of applications, including industrial hygiene, personal protection, multi-gas leak detection, and HazMat response.
MultiRAE Gas Monitor Specifications Sheet
Sensor Specifications:
| PID Sensor | Range | Resolution |
| VOC 10.6 eV (HR) | 0.1 - 5,000 ppm | 0.1 ppm |
| VOC 9.8 eV | 0.1 - 2,000 ppm | 0.1 ppm |
| Combustible Sensors | Range | Resolution |
| Catalytic LEL | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% LEL Methane) | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% Vol. Methane) | 0 to 100% Vol. | 0.1% Vol. |
| Carbon Dioxide CO2 NDIR Sensor | Range | Resolution |
| CO2 NDIR HR Carbon Dioxide (CO2) NDIR Sensor |
0 to 50,000 ppm |
100 ppm |
| Electrochemical Sensors | Range | Resolution |
| Ammonia (NH3) | 0 to 100 ppm | 1 ppm |
| Carbon Monoxide (CO) | 0 to 500 ppm | 1 ppm |
| Carbon Monoxide (CO), Ext Range | 0 to 2,000 ppm | 10 ppm |
| Carbon Monoxide (CO), H2-comp. | 0 to 2,000 ppm | 10 ppm |
| Carbon Monoxide (CO) Hydrogen Sulfide (H2S) - Combo |
0 to 500 ppm 0 to 200 ppm |
1 ppm 0.1 ppm |
| Chlorine (Cl2) | 0 to 50 ppm | 0.1 ppm |
| Chlorine Dioxide (Cl02) | 0 to 1 ppm | 0.03 ppm |
| Ethylene Oxide (Et0-A) | 0 to 100 ppm | 0.5 ppm |
| Ethylene Oxide (Et0-B) | 0 to 10 ppm | 0.1 ppm |
| Formaldehyde (HCH0) | 0 to 10 ppm | 0.01 ppm |
| Hydrogen Cyanide (HCN) | 0 to 50 ppm | 0.5 ppm |
| Hydrogen Sulfide (H2S) | 0 to 100 ppm | 0.1 ppm |
| Methyl Mercaptan (CH3-SH) | 0 to 10 ppm | 0.1 ppm |
| Nitric Oxide (N0) | 0 to 250 ppm | 0.5 ppm |
| Nitrogen Dioxide (N02) | 0 to 20 ppm | 0.1 ppm |
| Oxygen (02) | 0 to 30% Vol. | 0.1%Vol. |
| Phosphine (PH3) | 0 to 20 ppm | 0.1 ppm |
| Sulfur Dioxide (S02) | 0 to 20 ppm | 0.1 ppm |
Applications:
- - Fire Overhaul
- - Personal protection and multi-gas leak detection in industries such as:
- - Chemical
- - Telecommunications
- - Oil and Gas (downstream)
- - Food and beverage
Configurations:
Monitor-Only Includes-
- MultiRAE monitor with sensors, battery and wireless option as specified
- Protective rubber boot and filter(s) installed
- Conitinuous datalogging (6 months for 5 sensors @ 1-minute intervals)
- Travel charger / PC communication adapter
- PC Communication cable
- AC Adapter
- Calibration Adapter
- Alkaline battery adapter
- Hex Tool
- Quick Start Quide
- CD with documentation
- ProRAE Studio II Instrument Configuration & Data Management Software
- Calibration & Test Certificate
- Warranty/Registration Card
- Built-in Pump
- Belt Clip installed
- 3 spare external filters
- PID Sensor cap removal tool
- Plastic Case
Monitor with Optional Accessories / Confined Space Kit adds:
- Hard Transport case with custom foam
- Remote Sample Draw Kit
10" aluminum sample probe with replacement filters
3 hydrophobic barrier filters
10' self-coiling Teflon® tubing w/ Luer-style quick-connect fitting

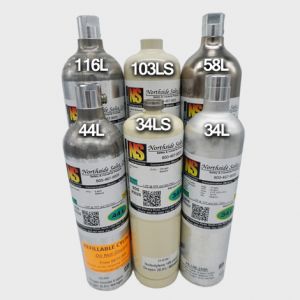

Monitor with Optional Calibration Kit adds:
- Accessories / Confined Space Kit
- Regulator(s) - depending upon gas selection
- 100 ppm Isobutylene Gas
- Quad Mix (C0,H2S,LEL and O2) Gas for MultiRAE
*(please note we offer other calibration kits depending upon sensor configuration on monitor)
